Bayonet Caps
The J-slot Female Half That Locks the Sensor Down
0.563 instandard OD, 0.457 in ID

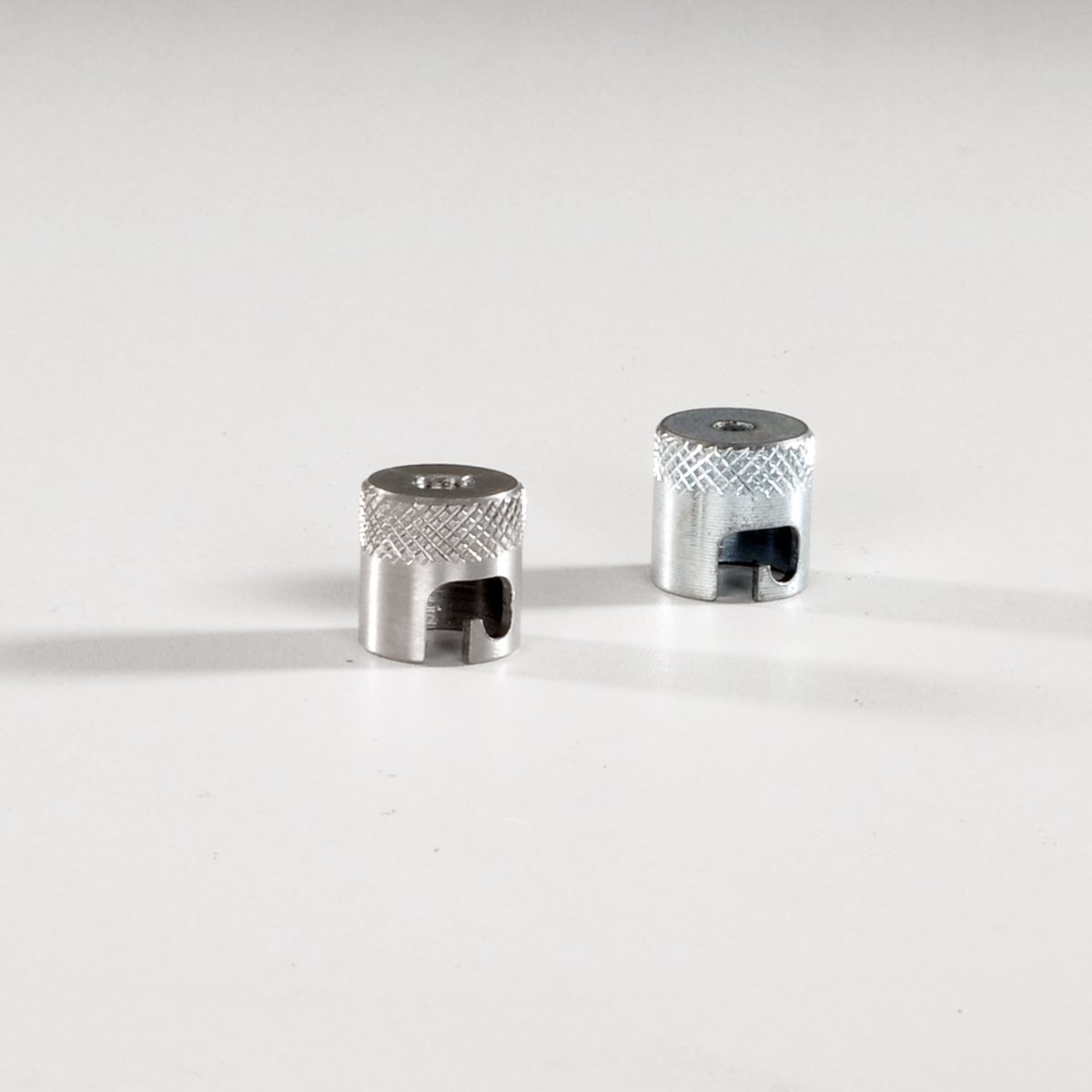

Bayonet caps form the female receptor side of a bayonet mount with J-shaped slots. The cap locks into place, ensuring a tight fit between the sensing junction and the measuring surface. The cap pushes the sensor against the surface, which increases accuracy, precision and response time.
Specification
- Material
- 303SS, 316SS, CS zinc plated, CS nickel plated, brass nickel plated
- J-slot
- Single, double
- Type
- Threaded to suit armor, threaded to suit spring, plain
- Standard size
- 0.563 in OD, 0.457 in ID, to suit 3/16 in OD probes
Part Numbers
6 standard part numbers, exactly as printed in our catalogue.
| Part No. | Description |
|---|---|
| AT-BLC-MAT-PLN-01 | Single J-slot plain |
| AT-BLC-MAT-PLN-02 | Double J-slot plain |
| AT-BLC-MAT-SPR-01 | Single J-slot threaded for spring |
| AT-BLC-MAT-SPR-02 | Double J-slot threaded for spring |
| AT-BLC-MAT-ARM-01 | Single J-slot threaded for armor |
| AT-BLC-MAT-ARM-02 | Double J-slot threaded for armor |
MAT = CSZ for carbon steel zinc plated, CSN for carbon steel nickel plated, BRS for brass nickel plated, 304 for 304SS, 316 for 316SS.
Available on Request
- Bayonet caps to suit other probe sizes.
- Custom bayonet caps in other OD and ID combinations.
