Meltbolts
For Melt Pressure Transducers in Molten Service
3 to 24 inlength range
We make meltbolts for melt pressure transducers used for pressure measurement and control of molten materials under high temperature conditions. Our blank meltbolts are used to close or block existing melt temperature or pressure vents.
Specification
- Material
- 304SS, 316SS, dual certified 304/304L and 316/316L
- Length
- 3 in to 24 in
- Bore type
- Step bore, thru-bore, blank
- Option
- Threaded head, set screws

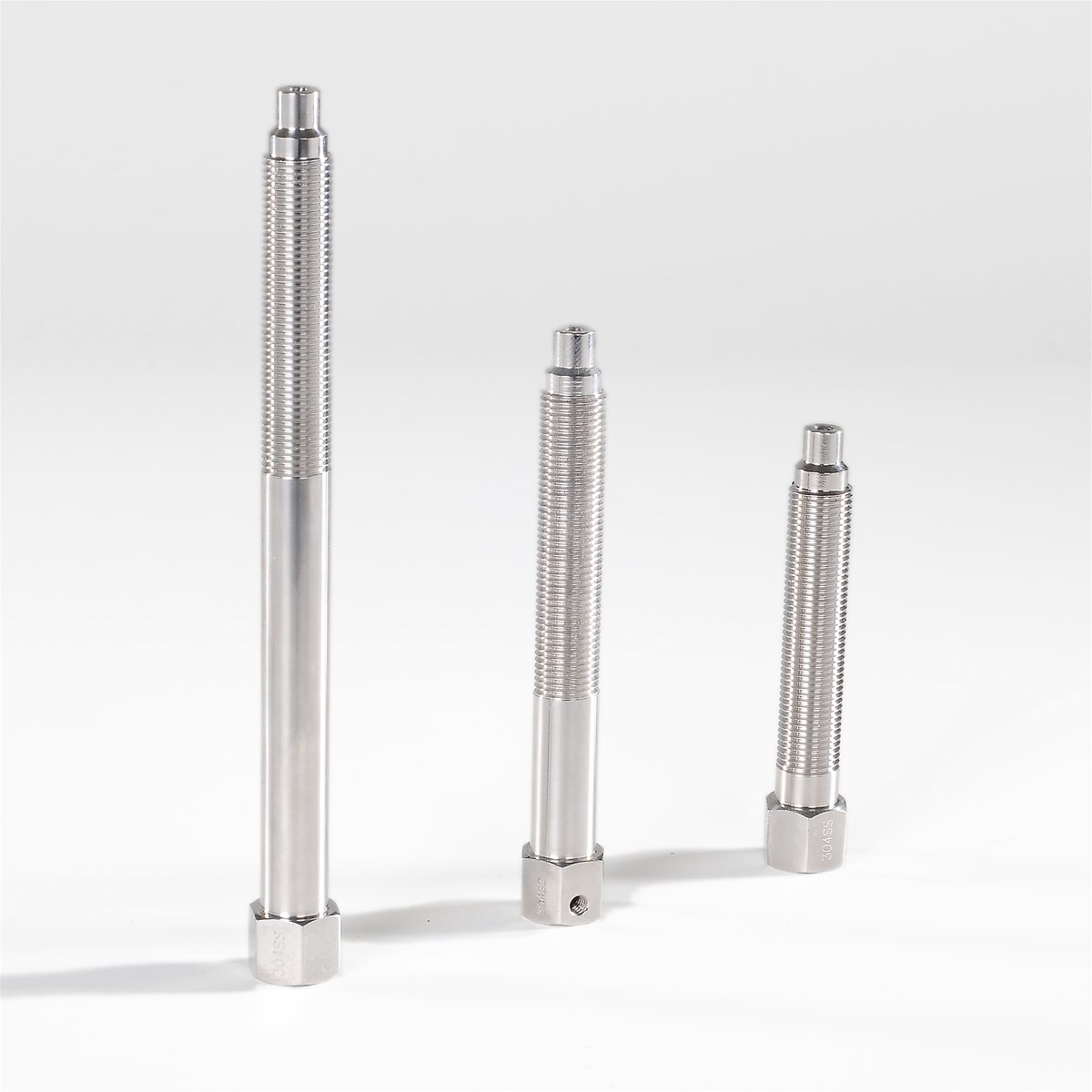

More Views
Part Numbers
4 standard part numbers, exactly as printed in our catalogue.
| Part No. | Length |
|---|---|
| ATMTB-MAT-003-SUFFIX | 3.0 in |
| ATMTB-MAT-004-SUFFIX | 4.0 in |
| ATMTB-MAT-006-SUFFIX | 6.0 in |
| ATMTB-MAT-009-SUFFIX | 9.0 in |
MAT = 304 for 304SS, 316 for 316SS. SUFFIX = STD for standard, 516 for 5/16 in-24 tapping inside head, 815 for M8 x 1.5 tapping inside head, X for #8-32 UNC tapping for set screws, B for blank meltbolt.
How We Make It
- All threads are cut on CNC turning centres and held to a standard tolerance.
